Program Manager Soldier Clothing and Individual Equipment Issues RFI To Industry For Army Modular Tactical Holster In Support Of XM17 Modular Handgun System

Wednesday, August 17th, 2016

This is a great piece of news. The Product Manager for Soldier Clothing and Individual Equipment (PdM SCIE) has identified a need for a new modular and tailorable holster system in support of the Product Manager for Individual Weapons (PdM IW) Modular Handgun System (MHS) XM17 program.

While the pistol is PdM IW’s bailiwick, it’s PdM SCIE’s responsibility to maintain, develop, and improve Soldier clothing and individual equipment to include holsters as the life cycle manager of these items. They’ve fielded holsters in the past.  For example, in 2013 they began fielding the Blackhawk SERPA and a G-Code holster for the M9 Handgun.

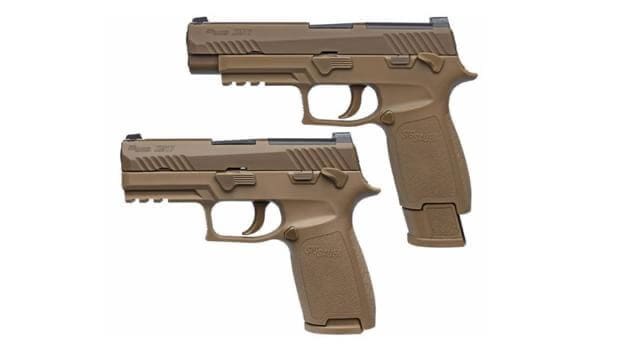

However, along with the pistol it will support, this requirement is new and has us excited.  To begin with, it shows that the XM17 is alive and kicking and far enough along to give accessories like holsters a serious look.  What’s more, it’s good to see PdM SPIE working with PdM IW to field a holistic solution which crosses commodities between the two teams.  The XM17 solicitation did call for holsters, but as we’ll show below, the holster concepts weren’t nearly as ambitious as the requirement for the pistol.

In the solicitation for the Modular Handgun System, the offerer’s were required to provide Holster Sleeves to fit the Blackhawk SERPA Improved Modular Tactical Holster.

The offerors were also required to provide compact holsters, which were essential Safariland ALS holsters.

In both cases, the holsters are well established legacy systems, in wide use. Whether you like them or not, they are industry standard holsters. But if the Army is to get a new pistol, why not see what industry is capable of and field a new holster as well?

That’s the point of this call to industry requesting formation on what they are capable of regarding holsters. Specifically, they are asking a lot and hopedully, industry will step up to the plate. Here is a sampling of what they are seeking; the entire list can be found at www.fbo.gov.

Key Performance Parameters

KPP 1 – Interoperability
The AMTH will carry a M17 pistol (T) and will be interoperable with any other MHS variants (i.e. Compact, etc.) (T). The AMTH must accept the M17 with suppressor kit, without actual suppressor in place (T), or with suppressor in place (O).The AMTH will accommodate future handguns used by Soldiers by providing an interchangeable holster sleeve variant (T), with one holster system (O).

Rationale: Compact variant users may need to carry their handguns in an overt/tactical method in the course of their duties and it would be necessary for the full size holster to accommodate the compact variant. In the event a new handgun is needed, the existing holster will need to holster or adapt to holster the new weapon to ensure Soldiers have a holster system available for use. The MHS suppressor kit may include a longer threaded barrel and higher than normal sights. The holster must accept the weapon configured for suppressed use, while accepting a fully suppressed MHS is an objective. Other methods of carrying fully suppressed pistols exist that may be more operationally suitable to the user.

KPP 2 – Modularity of Mounting Positions
The AMTH must be modular and provide three (3) mounting options, 1) mounting on equipment using standard Pouch Attachment Ladder System (PALS) webbing; 2) on a belt; 3) and a drop leg configuration (T=O). In any of the configurations the MHS Tactical Holster must be adjustable to accommodate a vertical or cross drawing of the handgun (T=O).

Rationale: The MHS must have a holster associated that allows the user to wear the system securely on their person and allows them to do all combat/battlefield required tasks. Users have a need for a holster to allow them to securely carry and quickly employ the MHS. Users currently have the modular capability to transfer the holster from chest (MOLLE) to hip to thigh carry in seconds without removing the weapon from the holster sleeve. Users require this capability in the AMTH, for example, when transitioning from riding in a vehicle to dismount and individual movement to key leader engagement. Users of the MHS will need to use one or both hands to conduct battlefield tasks while still maintaining a tactical advantage. Therefore, Users of the MHS will need to have the ability to draw the weapon effectively with one hand quickly and efficiently.

KPP 3 – Retention
The AMTH must provide retention upon holstering without the activation or manipulation of first level retention devices to secure the handgun when Soldiers are training and conducting combat operations (T). The AMTH will have to carry the pistol in a manner that conforms to the shape of the handgun and ensure the handgun is securely held within the holster (T). The AMTH must provide redundant systems to ensure the handgun is secure (O) and prevents someone other than the Soldier from drawing the handgun (O). The AMTH must provide one level of retention (T), two levels of retention (O). No retention buttons, switches, levers, etc. will use the Soldier’s trigger finger to release the handgun (T=O). None of the retention systems will cause damage to the pistol (T=O).

Rationale: Soldiers require the ability to draw handguns from holsters and re-holster with one hand reliably when transitioning from another weapon system, or when presented with a lethal force engagement with little or no warning when only armed with a handgun. This requires that Soldiers be capable of drawing the weapon quickly with one fluid motion, attain a proper firing grip from the holster, engage enemy targets, holster the weapon and potentially repeat the process during the same engagement or in successive engagements. Through all of this, Soldiers require the ability to continue to conduct other tasks with the non-dominant/non-firing hand and maintain situational awareness of their battle space. Therefore, Soldiers must be able to conduct draw and re-holster with one hand and without looking or glancing away from their near-target environment.

KPP 4 – Ergonomics
AMTH must be manufactured in variants for right and left hand dominant personnel (T) or have one variant which allows for ambidextrous access of the weapon without an increase to the size of the holster (O). The AMTH must allow the Soldier to draw and re-holster the weapon continually with one hand (T=O).

Rationale: Users need to be capable of carrying/accessing the holster on the dominant side. Objective ambidexterity in the holster permits logistical streamlining, but not at the expense of ergonomics or increased bulk/snagging hazard. Many users of the MHS need to use one or both hands while maintaining a tactical advantage. Being able to draw and re-holster with one hand and without taking eyes off the target area allows the user to maintain situational awareness and tactical advantage.

Key System Attributes

KSA 1 – Construction Materials
The AMTH must be constructed of materials that are non-magnetic, non-corrosive, block absorption of blood-borne pathogens or other biological fluids, fungus resistant and fire resistant (T=O). The AMTH shall not be degraded by CBRN decontamination materials; insect repellant; sea water; and commonly used petroleum, oil, and lubricants (POL) (T=O). The materials of the AMTH that contact the handgun will not mar the manufacturer-applied finish of the weapon (T). The color of the AMTH will be Tan 499 (T), Operational Camouflage Pattern (O). The external surfaces of the AMTH must be dull, non-reflective, and must not contribute to visual (T) or infrared signatures (O). The AMTH must not have visible logos or distinctive commercial markings when worn by the Soldier (T=O).

Rationale: The holster is not considered CBRN mission critical but is a durable item, as such, it needs to be capable of surviving CBRN training regimen and commonly used POL and insect repellants. The weapon finish prevents corrosion and maintains a level of operational security through camouflage. It is expected and acceptable that the holster may affect user-applied paints and camouflage that are less resilient than the factory-applied finish. The holster should not damage the finish and induce increased maintenance or corrosion of the weapon. Tan 499 is an approved Tank and Automotive Command (TACOM) color via Memorandum for Program Manger Soldier Weapons, Small Arms Weapons Neutral (Non-Black) Color, dated 31 January 2014.

KSA 2 – Configuration/Reconfiguration
Initial configuration and adjustment of the mounting system for the AMTH will be conducted at the operator level and will be accomplished without the use of special tools (T=O). Once set to the Soldier’s preferences, the AMTH must allow for placement between any of the three modular mounting systems without the need for tools in no more than 20 seconds (T=O).

Rationale: Initial configuration and/or reconfiguration is a task that would be conducted in a maintenance-type environment and not under fire. Soldiers do not have access to special tools and introducing special tools is not desired. The Soldier does have a common tool (multi-tool) that has narrow and wide blade flat screw driver tips and a #2 Phillips screw driver tip. Transition from one modular placement platform to another needs to be conducted in a combat environment (e.g., exiting or entering vehicles, drop zones or landing zones, etc.) and the Soldier should be able to do so without the use of tools in an expeditious manner.

KSA 3 – Airborne/Air Assault
The AMTH will include a retention system that can be configured in preparation of operations such as military free fall, static line parachute, air assault/fast roping, SPIES/FRIES, combat diver, patrol boat operations, hovercraft operations, rappelling, mountaineering, jungle penetrations, All Terrain Vehicle Operations, swimming, etc. which is installed before the operation and removed when extra retention is no longer required (T); is part of the holsters retention system (O). When conducting these dynamic movements, the Soldier will require multiple steps to draw the handgun (e.g., installing and removing bungee straps, manipulating locking levers, etc.) (T), be able to draw and holster the handgun continually with one hand (e.g., having additional steps with collocated levers, etc.) (O).

Rationale: Soldiers occasionally are required to conduct highly dynamic mission-critical tasks that may exceed the limitations of standard holster retention devices. If the standard retention device is not sufficiently robust to maintain security of the weapon, another form of retention is needed to ensure the weapon is secure. These operations are pre-planned thoroughly and configuration would not be necessary on short order or under fire. The need to present the weapon for use during these situations is real; therefore, Soldiers would still need to be able to do so in a timely manner and potentially with only the firing hand, and then re-holster and secure the weapon to continue the dynamic event.

KSA 4 – Law Enforcement Configuration
The AMTH must provide a Law Enforcement configuration (T). The AMTH Law Enforcement configuration will have additional mounting platforms and/or parts that can be added to the AMTH to meet the Law Enforcement Configuration or be a variant that attaches to the AMTH platforms (T), be the same as the AMTH with no additional parts (O). The Law Enforcement configuration will consist of a holster sleeve and a mounting system that is compatible with existing Military Police Law Enforcement Ensemble Kit (LEEK) belt dimensions (T). All components of the Law Enforcement Configuration will be black in color (T=O). The Law Enforcement Configuration will have a mounting platform that is user adjustable for height, adjustable to below/above the belt wear, and capable of being angled to slant holster away from the user’s hips (T) by providing an additional belt mounting system to the AMTH that provides the required adjustability (O).

Rationale: Military Police conducting Law Enforcement Operations have special capability needs. It is logistically prudent to ensure the Law Enforcement configuration is compatible with the AMTH. LEEK belt and accessory dimensions and characteristics will need to be compatible with AMTH LE configurations.

KSA 5 – Target Acquisition
The AMTH must have a variant capable of holstering the XM17 with target acquisition enablers (lights, lasers, pointers) mounted on the forward rail of the handgun, which does not extend forward of the muzzle or below the lowest portion of the trigger guard, and is not more than 1.5 inches wide (T). The AMTH must be capable of holstering the XM17 with target acquisition enablers (lights, lasers, pointers) mounted on the forward rail of the handgun, which does not extend forward of the muzzle or below the lowest portion of the trigger guard, and is not more than 1.5 inches wide (O). The AMTH must be capable of holstering the XM17 with target engagement enabler (mini red dot sight, RMR, etc.) mounted on the top of the handgun slide (O).

Rationale: Soldiers that require target acquisition enablers need to be capable of employing those enablers straight from the holster. When using night optical devices, it is imperative that the weapon be equipped with target acquisition enablers to be able to engage threats with any degree of accuracy. Installing the enabler after drawing the handgun and then removing the enabler prior to re-holstering is not acceptable in any situation. Installing the enabler on a loaded handgun while under fire is unsafe. Enabler fit is based on the required capabilities of the XM17 enabler SEP effort. Intent of the threshold is to have an AMTH variant for enabled pistols. Intent of the objective is to have a single AMTH that accepts both enabled and non-enabled pistols. It is possible that the XM17 will be capable of accepting mini red dot sights (MRDS). There are also other efforts that are reviewing the viability of MRDS for pistols. It is reasonable and prudent to expect some users will have a need to holster the XM17 with MRDS capabilities mounted on the weapon.

KSA 6 – Cost
The Tactical Holster system with holster sleeve and three mounting positions will cost less than $100 (T), $70 (O). The Law Enforcement configuration will cost less than $50 (T), $20 (O) for the law enforcement adapter.

Interested parties have 45 days to submit in response to this Request for Information. Full details can be found at www.fbo.gov

Warrior East – High Threat Concealment Adaptive Platform Series

Friday, July 15th, 2016

This is the upcoming Adaptive Platform Series from High Threat Concealment. So far, it consists of a Holster, Dual pistol mag pouch, and single AR/M4 mag pouch. What makes this different is that it’s compatible with Safariland, Blackhawk, G-Code RTI and Blade-Tech hardware.

www.highthreatconcealment.com

GunfightersINC CAS/C5S IWB Holster

Thursday, July 14th, 2016

For Immediate Release: The current market trends show an overwhelming push towards lightweight, highly concealable single stack pistols. These pistols are easy to carry and with the right holster, are barely noticeable under a wide array of cover garments. The major trade-off with a single stack 9mm is capacity. Even with a +1 or +2 baseplate, you are still sitting at half the round count of a double stack pistol such as a Glock 19. While it is certainly an option to carry magazines in pockets or in a separate pouch, we wanted to offer a system that would allow you to have a spare magazine at the ready in a streamlined low-profile system.

The CAS/C5S IWB Holster is available in two configurations: The CAS positions the firearm vertical for easy concealment and your magazine at 30° angle for the fastest and most natural possible in the 12 O’clock position. The C5S is designed to sit on the strong side of the body, with a canted firearm (10-15°) and slightly canted magazine (10°) for fast draw and minimal printing in the 3-5 O’clock position. The rounds are set to face toward the firearm to enhance quick reloads. The holster is contoured to have a steep curve that pulls the firearm and magazine into the body to reduce printing and aid concealment.

We designed the CAS/C5S holster to be a simple, one-piece unit that you can easily take on and off with little trouble. The minimalist design prevents discomfort by limiting bulk and unnecessary material, yet still offers a full sweatshield to protect your firearm. No fighting overly complex clip systems or bulky brackets. No threaded fasteners to work loose. No magazines floating around in pockets or an extra holster that you have to deal with. Our experience has shown us that if your holster is uncomfortable or needlessly complex, you won’t wear it.

The CAS/C5S is available for a wide variety of compact and subcompact firearms from most major firearms including 1911s, Glock, FNH, H&K, Sig, Smith and Wesson, Springfield, Ruger and Walther.

To learn more visit Gunfightersinc.com.

DSG Arms Introduces The Alpha HR Holster

Thursday, June 16th, 2016

hr1-1

New Stream-lined OWB Holster

Fort Worth, TX, June 15, 2016– Following the successful launch of the IWB Compact Discreet Carry Holster in November of 2015, DSG Arms has revisited outside-waist-band holster design with two goals in mind: stream-lining without sacrifice of quality or comfort, and compatibility with threaded barrels. The new HR Holster from DSG Arms, engineered for minimal presence and maximum comfort, fulfills both goals.

Order with your choice of black or red hardware on carbon fiber-textured Boltaron (Retail price $99).

Models currently available for pre-sale: Glock 17, 19, 26, 42 and Glock 43.
Models for Glock 17/19 with RMR’s will be added in the near future.

    • Designed to accommodate threaded barrels.
    • Adjustable retention.
    • Formed for close-to-the-body fit.
    • Refined chamfered bonded edges for comfort.
    • 1.75″ belt loops with improved design and materials. (Additional loop widths available)
    • 15° cant on left hand/right hand models.
    • Solid Boltaron construction.

www.dsgholsters.com

Galco Gunleather Announces Multiple Holsters For The M&P .45 Shield

Tuesday, May 31st, 2016

PHOENIX, Spring 2016

Galco Gunleather is excited to introduce multiple holster fits for the new Smith & Wesson M&P Shield in .45 ACP! Galco worked closely with S&W prior to the Shield .45’s highly successful introduction at the 2016 NRA Annual Meetings & Exhibits in Louisville. For the new pistol, Galco is pleased to offer a pair of its best-selling inside the waistband holsters, the Stow-N-Go and the Tuck-N-Go, the popular Pocket Protector, and two of its finest belt holsters, the Stinger and Side Snap Scabbard.

Not only that, Galco also offers eight women’s holster handbags, the versatile Underwraps belly band, and three day planners for the instantly-popular Shield .45!

With holsters for multiple carry methods and multiple price points, Galco can help outfit Shield .45 owners with the highest-quality American-made gunleather. Visit Galco’s website today and see the complete line of holsters for the new S&W M&P Shield .45!

www.galcogunleather.com

Safariland Unveils Over 15 Holster Fits for the Newly Released Smith & Wesson M&P Shield .45

Sunday, May 29th, 2016

Untitled

ONTARIO, Calif. – Today, Safariland announced the expansion of Safariland and Bianchi concealment holster lines with several new fits for the incredibly popular Smith & Wesson M&P Shield .45.

“With the launch of the Smith & Wesson’s M&P Shield .45, we are excited to debut fits in several of our most popular holsters across the Safariland and Bianchi brands,” said Scott Carnahan, Vice President, Equipment.“With more than 15 concealable options between Safariland and Bianchi, consumers and professionals will find the perfect holster for their concealment needs.”

Renowned for innovation, quality and performance, Safariland holsters are the overwhelming choice of law enforcement agencies and competition shooters. Safariland concealment holster models fitting the M&P Shield .45 encompass ten models for belt slide, paddle and inside-the-pants carry.

The Bianchi holsters for the Smith & Wesson M&P Shield .45 demonstrate the brand’s legacy craftsmanship in leather products that balances functional design and quality. M&P Shield .45 users have several carry options with choices for two belt slide holsters and two inside the waist models, including Bianchi’s best-selling Model 100 Professional, and three holsters from the Allusion series.

www.safariland.com

SOFIC – High Threat Concealment

Wednesday, May 25th, 2016

The new IWB with Light Holster from HTC accommodates pistols with both Lights and Red Dot Sights.  As you can see, there’s a guard toward the body and you can adjust cant and tension.

BLACKHAWK! Releases New 3-in-1 Concealed Carry Holster

Tuesday, May 17th, 2016

BH_Leather_Tuckable_Holster_WGun_lg

OVERLAND PARK, Kan. – May 16, 2016 – BLACKHAWK!’s new Leather Tuckable Pancake Holster offers maximum versatility and the ability to adapt to most popular carry configurations.

The design allows civilians and law enforcement officers to choose from inside-the-waistband, tuckable or belt-mounted wear. The holster combines premium leather and injection-molded plastic to offer comfort, security and rugged durability.

The Tuckable Pancake Holster features a three-slot design for strong-side, behind-the-hip, appendix and cross-draw carry on belts up to 1.75” wide. It offers tension-adjustable retention and a trigger guard for safety and security. Adjustable cant and ride, along with a built-in shirt shield, add comfort and a moisture barrier between the user and firearm.

“We know that our customers rely on their equipment to keep them safe, and we are excited to offer such a multifaceted holster,” said Jarrett Beck, BLACKHAWK! Product Director. “This new holster offers personal adjustability, safety, convenience and value in an all-in-one package.”

BLACKHAWK!, a Vista Outdoor, Inc. brand, is constantly researching, refining and perfecting every detail to provide tactical gear that won’t let you down. For more information, visit www.blackhawk.com.
