New Arisaka Defense Products For February 2019

Monday, February 11th, 2019

Side Scout Mount

The new Side Scout Mount (SSM) is designed for use with Surefire Scout Lights, the Arisaka 300 and 600 Series, and the Streamlight Protac Rail Mount lights. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok, KeyMod, and Picatinny handguards, and tucks the light underneath either side of the ATPIAL laser/illuminator series, including the ATPIAL-C, AN/PEQ15, and LA-5/PEQ. It will also allow the light to clear the QD lever on the Steiner DBAL I2, A3, and D2. Now shipping for M-Lok, KeyMod, and Picatinny

Streamlight Tailcap Adapter

Our new Streamlight Tailcap Adapter allows the Protac Rail Mount 1 and 2 to use Surefire Scout tailcaps and remote switches, including the DS tailcap with SR-D-IT dual remote switch for use with laser/illuminators. The Rail Mount 1 and 2 version is available now, while the HL-X model has an ETA of early March.

Arisaka Defense – Inline Scout Mount

Sunday, November 19th, 2017

Arisaka

Arisaka Defense’s Inline Scount Mount is an aftermarket replacement mount for SureFire M600 and M300 Scout series lights, the Arisaka 300 and 600 series lights, and Streamlight’s Protac Rail Mount 1 and 2. It replaces the stock Picatinny rail adpater with a low profile mount designed to interface with a model-specific mounting interface; seen in the imagery is the M-LOK model, although mounts for KeyMod and Troy/VTAC Alpha Handguards are also available.

Arisaka 2

This mount excels on handguards with 45 degree mounting flats, allowing the user to position the light closer or farther away from the 12 o’clock rail, providing clearance for a front sight, or other accessories. Additionally, the base of this mount with a SureFire Scout Light sits only .20″ above the mounting surface, making it, according to Arisaka, the thinnest inline style mount on the market.

arisakadefense.com

Arisaka Defense – 600 Series Light

Tuesday, March 21st, 2017

The Arisaka 600 Series Light is an illumination package consisting of the Arisaka 600 Series Light Body, Tailcap, and Malkoff Devices Scout head.


Malkoff offers several head options that all use TIR lenses and are fully potted for durability. Beam profile, output, and run times vary:

E2ST (Super Throw) – 20,000 lux at 1 meter and 650 initial/550 continuous out-the-front lumens. This head has a very focused beam for maximum distance. Continuous run time is 15-20 minutes on 2x CR123 cells or 45-60 minutes on 1x 16650 cell.
E2S (Super) – 12,000 lux at 1 meter and 750 initial/700 continuous out-the-front lumens. This head has a wider beam profile, giving more spill (but still has plenty of throw). Continuous run time is 15-20 minutes on 2x CR123 cells or 45-60 minutes on 1x 16650 cell.
E2T – 10,000 lux at 1 meter and 350 out-the-front lumens. This gives the light plenty of throw for medium range use, while still retaining enough spill for close range and peripheral lighting. Continuous run time is 90-120 minutes on 2x CR123 cells.
The 600 Series Light Body is manufactured without the mounting interface for the stock Picatinny clamp found on Scout lights. This greatly increases the clearance for front sights when used in combination with the Arisaka Inline Scout Mount or Offset Scout Mount, and allows the entire light to be pulled in very close to the rail system.


Weight: 3.5 oz (including batteries)
Length: 5.125″
Diameter: 1.0″ at the head.
The light body, Arisaka momentary tailcap, and head are CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. High quality Buna-N O-rings and CR123 batteries are included. The 600 Series Light will fit in any aftermarket Scout mount. Made in the USA.


Additionally, Arisaka will be exhibiting at the USASOC Sniper Competition, March 23 – 24 in the vendor tent on Range 37 on Ft Bragg.

arisakadefense.com/products/600-series-light

New Products From Arisaka Defense

Thursday, August 11th, 2016

Arisaka Defense recently announced a line of four new USA-made products, including new low-pro Picatinny segments for M-LOK and KeyMod and a mount for Harris Bipods. Full details below.

Bipod_Adapter_redo

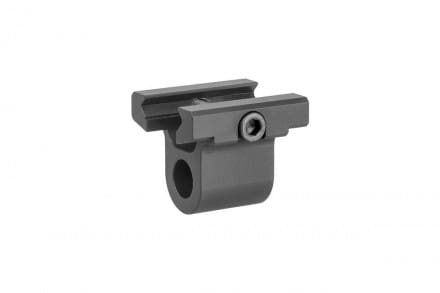

Low Profile Harris Bipod Picatinny Mount

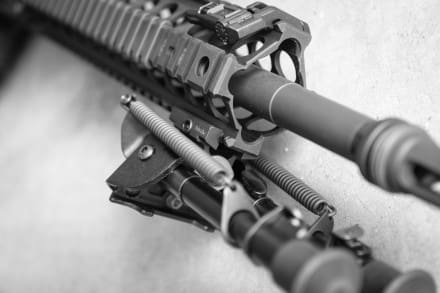

Arisaka’s Low Profile Harris Bipod Picatinny Mount is a low-profile bipod mount for Harris S-Series bipods. It replaces the stock sling swivel interface with a minimalist Picatinny mount. Included with the mount is rotation limiters for 15 degrees of cant, and the mount is also compatible with pod lock levers. The mount weighs in at 1 oz. and is only 1.4″ in length, making it much less bulky than the stock mount.

IMG_8347

Made from 6061 aluminum and MIL-A-8625 Type III hard coat anodized.

Arisaka_Pic-LP1

Low Profile Picatinny Rails for KeyMod and M-LOK

Designed for KeyMod and M-LOK handguards, these low-profile Picatinny rails feature a reduced height to pull accessories closer to the handguard. They feature three fasteners to spread the stress of larger accessories, such as bipods or vertical grips, over more slots on the rail.

Arisaka_Pic-LP12

Made from 6061 aluminum and MIL-A-8625 Type III hard coat anodized.

KeyMod_QD_mount_12-Edit-Edit

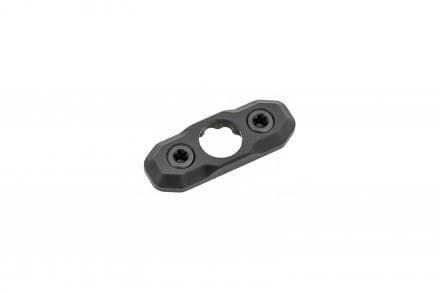

KeyMod QD Mount

The KeyMod QD Mount utilizes BCM’s reverse threaded KeyMod screws, and are just .167″ thick.

N5VM70Mgygdp5v6AkQdNqsIJftwCtfGlrKxmEOh5STo

Made from 7075 aluminum and MIL-A-8625 Type III hard coat anodized.

Arisaka_620_Adapter19

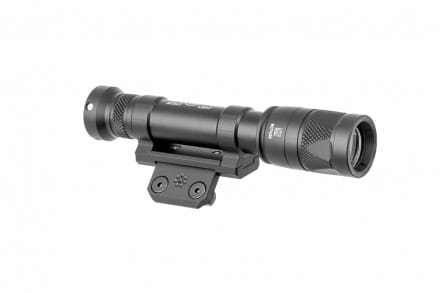

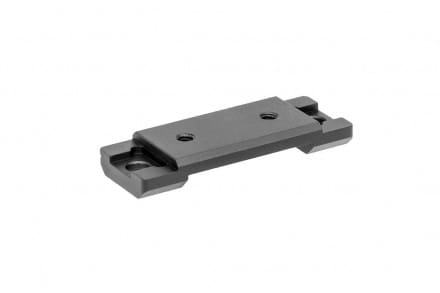

Offset M620 Adapter

The Offset M620 Adapter allows SureFire’s M620 Scout Light to interface with the Arisaka Offset Scout Mount. The adapter preserves the height over rail and capability to adjust lateral positioning of the original mount. This provides increased clearance around front sights and other top rail mounted accessories.

Arisaka_620_Adapter4

Made from 6061 aluminum and MIL-A-8625 Type III hard coat anodized.

arisakadefense.com

Arisaka Defense – Inline And Offset Picatinny Mounts

Monday, October 5th, 2015

Inline and Offset

Arisaka Defense has recently released the new Inline and Offset Picatinny mounts. CNC machined from 6061 aluminum, these mounts are designed to offer a 45 degree Picatinny mount for non-Picatinny accessory rails, such as M-LOK, KeyMod, and the Centurion Arms CMR. Both mounts utilize Bravo Company’s Inverted KeyMod Screws for the KeyMod variants.

Inline

Inline Picatinny Mount

The Inline Picatinny Mount is designed for rail systems with 45 degree attachment interfaces, including the BCM KMR, Geissele SMR MK4 and MK8, Mega Arms MKM/MML, WEdge Lock, and Midwest Industries Gen 3 handguards. The height and spacing of this mount places mounted lights close to the handguard, mounted at the 1:30 or 10:30 clock positions. This mount is available with KeyMod and M-LOK mounting hardware. Made in the USA.

Offset

Offset Picatinny Mount

The Offset Picatinny Mount is designed for rail systems without 45 degree attachment interfaces, including the Noveske NSR, Midwest Industries Gen 2, and SLR Rifleworks Solo Series handguards. The height and spacing of this mount places mounted lights at the 1:30 or 10:30 clock positions. This mount is available with KeyMod, M-LOK, and Centurion Arms CMR mounting hardware. Made in the USA.

arisakadefense.com

Arisaka Defense Releases KeyMod Offset Scout Mount

Wednesday, February 4th, 2015

Arisaka Defense has released its new Offset Scout Mount, a KeyMod-compatible mounting plate for the SureFire Scout M600 and M300 series weapon lights. The full release can be read below:

Offset Mount

Apex, NC, February 3, 2015 – Arisaka LLC is pleased to announce the release of its new Offset Scout Mount.

1

The Offset Scout® Mount is a low profile KeyMod mounting solution for the Surefire Scout Light® M600 and M300 series weapon lights. It utilizes Bravo Company’s patent pending inverted KeyMod screws, making the mount less than 0.165″ thick. The light is positioned at a 45 degree angle and has four lateral mounting positions, which allows the light to be tucked in close to the top Picatinny rail or positioned outwards to gain clearance around front sights or other accessories. The Offset Scout® Mount can also be paired with the Arisaka 300 Series Light Body for an even lower profile light setup.

2

The Offset Scout® Mount is compatible with most KeyMod handguards like the Noveske NSR, Bravo Company KMR, Knight’s Armament URX4, Geissele SMR MK4/5 KeyMod, and Midwest Industries SSK.

Weighing only 0.4 oz, the Offset Scout® Mount is manufactured out of 6061 aluminum and type III hard coat anodized. Like all Arisaka products, it is made entirely in the USA.

arisakadefense.com

Arisaka Defense Announces New Vertical Grips And Optic Leveler

Wednesday, January 14th, 2015

Arisaka Defense products

Apex, NC, January 6, 2015 – Arisaka LLC is pleased to announce the release of its new Vertical Grips and Optic Leveler.

The Vertical Grip is a robust, minimal foregrip for KeyMod, M-Lok, and CMR handguards. It features a radiused profile at the top which tapers to meet the mounting surface on the handguard, giving a low-profile feel and ergonomic comfort. Twin mounting screws ensure secure attachment. The Vertical Grip is CNC machined from 6061 aluminum and type III hard coat anodized. It weighs 1.8 oz, is 2.5″ in height, and 1.3″ in diameter.

The Optic Leveler is an inexpensive, easy-to-use tool for leveling scopes mounted in rings or one-piece mounts. The base plate sits on the Picatinny rail or one-piece mount just below the turret cluster of the scope, which is intentionally left slightly loose in the rings so it can rotate. The leveling wedge is inserted from the side into the slot in the base. As the matching ramped surfaces of the wedge and base engage, the top of the wedge rises upwards and contacts the turret cluster, causing it to spin until level. The user can then proceed to tighten the scope rings.

All Arisaka products are made entirely in the USA.

arisakadefense.com

Arisaka Defense Releases New 300 Series Scout Compatible Light Body

Tuesday, December 30th, 2014

Apex, NC, December 30, 2014 – Arisaka LLC is pleased to announce the release of its new 300 Series Light Body.

Arisaka 1

The 300 Series Light Body is designed as a streamlined replacement for Surefire ScoutLight M300 bodies. It is manufactured without the mounting interface for the stock Picatinny clamp. This greatly increases the clearance for front sights when used in combination with the KeyMod and M-Lok Arisaka Inline Scout Mounts on handguards with 45 degree mounting surfaces adjacent to the top Picatinny rail, such as the BCM KMR, KAC URX4, and Geissele SMR MK8.

The 300 Series Light Body is compatible with all E1 series and Scout Light M300 series tailcaps and heads. It will also fit in any aftermarket Scout mount, as it retains the mounting holes and square lug interface on the underside of the light body.

It is also possible to build a complete light from scratch by sourcing a Surefire or aftermarket light head, and a tailcap or tape-switch.

The 300 Series Light Body is manufactured out of 6061 aluminum, type III hardcoat anodized, and made entirely in the USA.

Arisaka 2

arisakadefense.com/collections/frontpage/products/300-series-light-body
