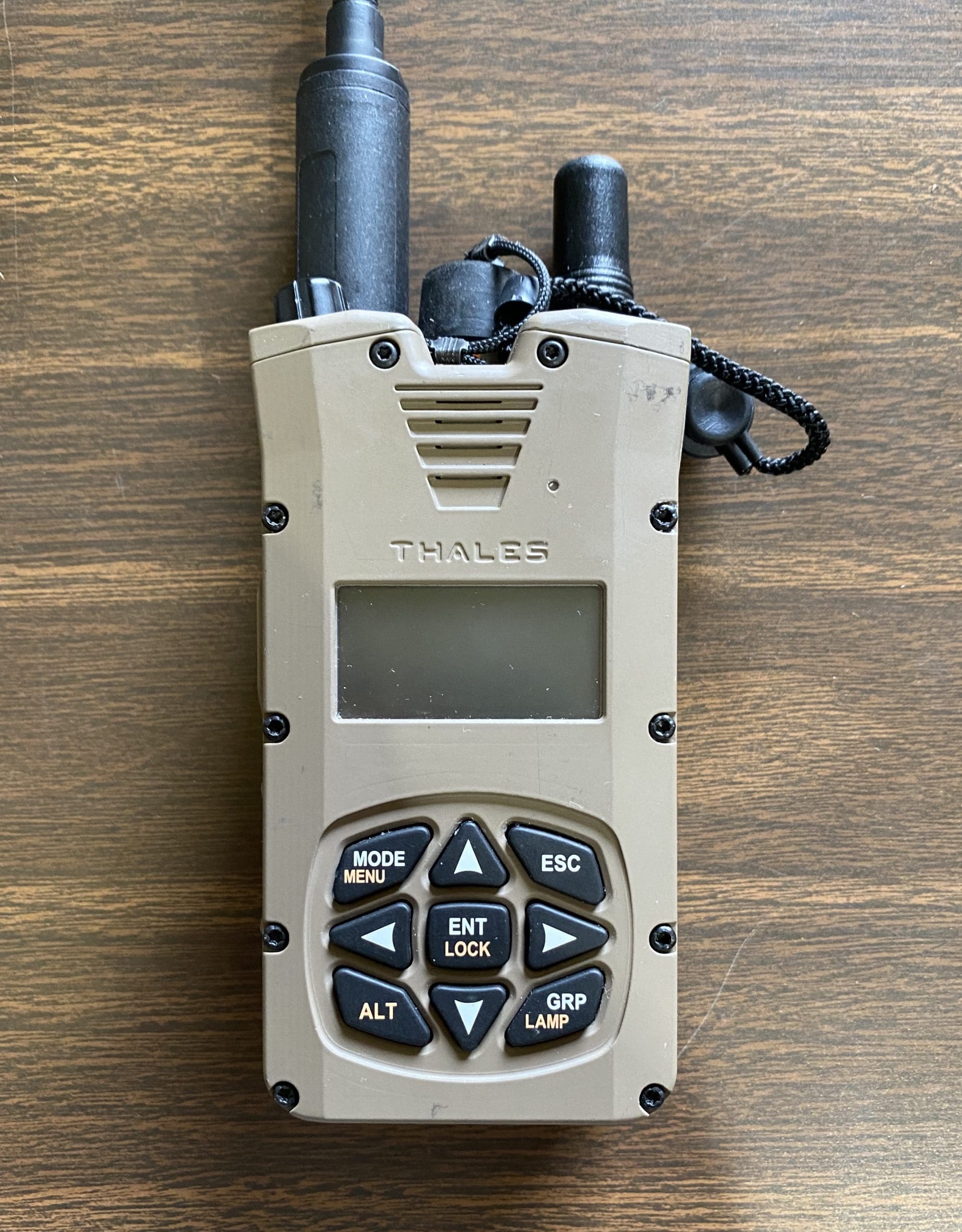

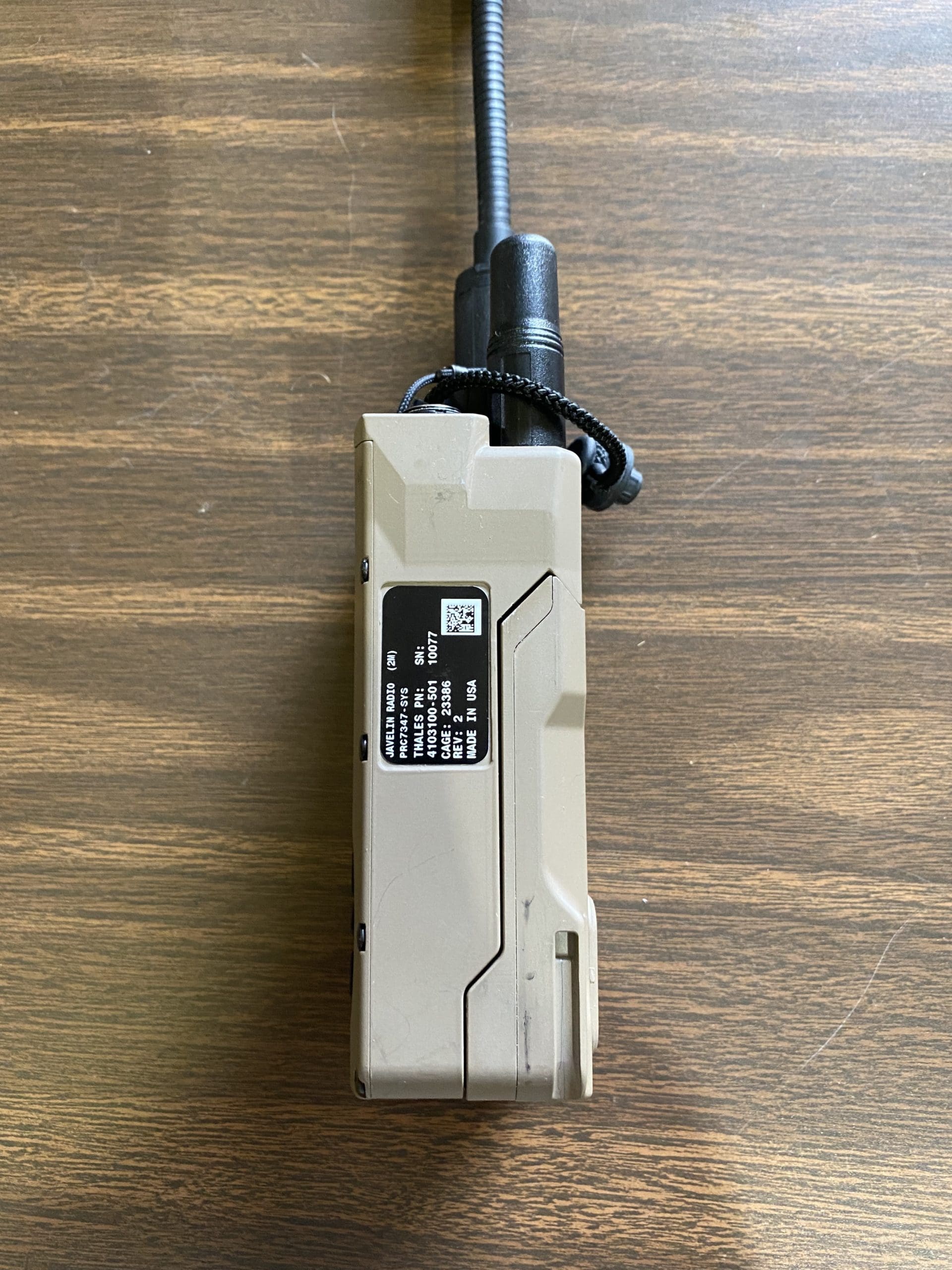

The Javelin from Thales is a small form factor single channel MANET Handheld Radio which uses the TSM waveform to provide wideband MANET coverage in areas such as shipboard, caves and urban operational settings.

TSM characteristics:
•Infrastucture-less MANET
•High-speed wireless IP networking
•Self-Forming, self-healing
•Scalable to 200+ nodes
•Robust in harsh environments
•Fast, seamless network join/merge
•Instant adaptation to network topology change

Javelin is interoperable with the IMBITR 2-channel Leader Radio, and other third party radios running the TSM waveform. It supports UHF, Upper UHF, L and S band communications.

Javelin features Embedded GPS and Type 3 AES 256 Encryption and is 2M Immersible.

Size data:
Length: 5.2 inches (13.21 cm) (excluding antennas)
Width: 2.6 inches (6.60 cm)
(with battery attached, excluding antennas)
Depth: 1.8 inches (4.57 cm)
Weight: 1.25 lb Radio and Battery (567 g)

Units and agencies can procure all products shown during ADS Federal Range Day by contacting ADS Inc.
