DSEI 17 – Atlas Devices Introduces Lightweight Assault Ladder From Pilot Innovations

Friday, September 15th, 2017

leading up to SOFIC we told you about the Lightweight Assault Ladder by Pilot Innovations. It is now available from Atlas Devices.  Weighing in at 18 lbs (8.1kg), the ladder extends to 18′ (5.5m). The wide rungs are spaced 15.4″ (39.2cm) apart. Although the working load is 350lbs (158.76kg) and intended for single user at a time, it can be used for bridging, although training is a must to learn how wide the spans may be.

The carbon fiber construction features positive step locks which are located under each step. Additionally, the ladder can be fitted with removable nylon shoulder straps.

www.atlasdevices.com

SOFIC – Atlas Devices

Tuesday, May 24th, 2016

Atlas Devices always has some great new technologies and this year, they didn’t disappoint.

This is the ConAxe, designed to be inserted into the eyelets of a Connex. With a pul of the telescoping pole’s rope, it inserts into the eyelet and holds fast. It’s the first time it’s been shown publicly so customers may end up asking to have it adapted to their pole system.

Below is an Atlas Magnetron System. This seven pound system incorporates switchable magnet for VBSS and other tactical access including vertical overhangs. It will suspend up to 700 lbs per magnet which are switched on and off via the handle.

www.atlasdevices.com

High Angle Solutions – Atlas Devices – REBS Compact Launcher

Wednesday, March 16th, 2016

Compact Launcher

The REBS Compact Launcher is a multiple shot, subsurface transit capable rope/ladder deployment system that is optimal for use in scenarios where traditional hook & pole climbing systems can’t reach high enough to hit a target. The REBS is capable of reaching vertical heights of 100+ feet, and excels for use in mission profiles including Visit Board Search and Seizure, High Angle Rescue, Urban Vertical Assault, and Tactical Rope Access.

Specs

  • Bore: 50mm / 2.17in
  • Dimension/Weight: Length 23in/585mm (collapsed) ; 9.7lbs/4.4kg—Button Collapsible Stock
  • Pressure—300bar/4500psi
  • Rope Diameters—Variable
  • Rope Ladder Deployment: Yes
  • Full Pressure shots per bottle fill: 2+
  • Accuracy: +/- 3ft @ max height
  • Height Selectable Deployment: Variable
  • Max Height-Rope: 115ft—Rope diameter and condition dependent
  • Max Horizontal-Rope: 190ft / 60m
  • Max Height-Ladder: 52ft / 16m
  • Live Single-Operator Load on Grapnel: Yes
  • Grapnel Feature: Replaceable Impact Tip, Collapsible Titanium Arms
  • Dive Capable
  • Atlas Devices_Compact Launcher_GOPLAT

    Get the full Atlas Catalog here: atlasdevices.com/pdf/Atlas_Devices-2015_Catalog.pdf

    For more info visit www.atlasdevices.com or email [email protected].

    High Angle Solutions is a weekly feature by DMM, CTOMS, and Atlas Devices.

    High Angle Solutions – Atlas Devices – Atlas Powered Ascender 5 (APA5)

    Wednesday, February 10th, 2016

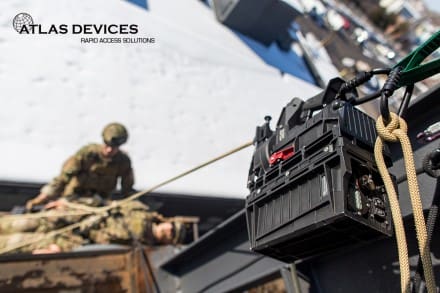

    Atlas Devices-APA5-Single Person Rescue

    The Atlas Powered Ascender 5, or APA-5, is a powered ascension device which is optimized for situations such as High Angle Rescue, Confined Space Rescue, Disaster Response, and AIROPS. Described as “the 4-6 man haul team in 1 box”, the APA-5 features trigger controllable speed with power tool-like design, and requires minimal training to operate.

    Specs

    Ascender

    – PN: APA-5, APA-5-S (AK-APA5 for Full Kit)
    – Weight: 14.5 lbs /6.6kg
    – Max direct lift capacity: 600 lbs /272kg
    – Ascent/descent speed: Variable
    – Intuitive power tool-like operation / Variable speed control governor
    – Submerged system operation
    – Load-rated housing

    Battery

    – STD-7.5lbs/3.4kg; High Capacity-12.4lbs/5.6kg
    – Depth-rated interchangeable battery

    Rope

    – Rope diameters: 6-11mm
    – Integrates seamlessly with COTS climbing equipment

    Environmental

    – Operational seawater depth rating
    – Operating Temp Range: -10° F to +120° F / -23° C to +49° F

    Safety

    – Fully tensile load-rated housing
    – Ergonomic safety interlock for operation
    – Emergency mechanical descent without battery
    – Non-volatile battery if punctured by ballistic

    Options

    – Wired or wireless remote control
    – High-speed ascent (lower max lift capacity)
    – Multi-diameter rope capability in single configuration
    – Extended life battery

    Certifications

    – NAVSEA 9310 Certified by US DoD
    – US DoD Test and Evaluation Command Safety Confirmation
    – certification for Operational Use

    Examples of the APA-5 in use

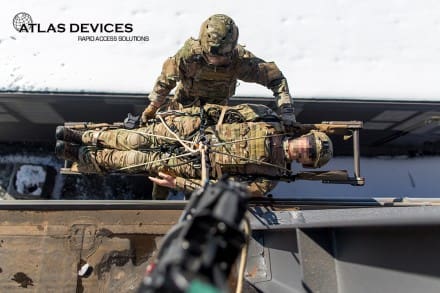

    Atlas Devices-APA5-Single Person Hoist Recovery w Remote

    1-Person Rescue APA5 w/ Remote Control: Horizontal Hoist w/ High Point

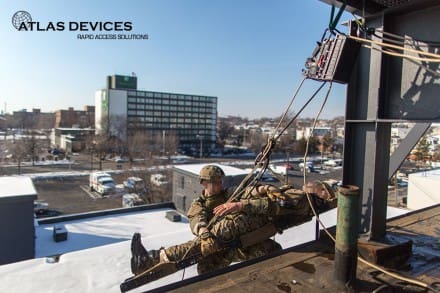

    Atlas Devices-APA5-Single Rescuer Hoist Edge Transition

    1-Person Rescue w/ Remote Control: Horizontal Hoist-Edge Transition w/ High Point

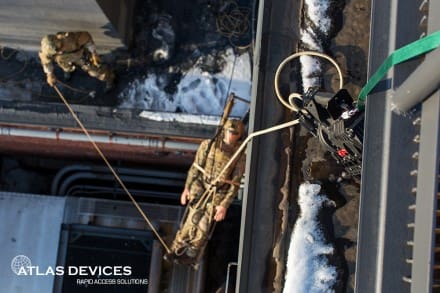

    Atlas Devices-APA5-Patient Recovery w Tagline

    1-Person Rescue w/ Remote Control: Horizontal Hoist w/Tagline

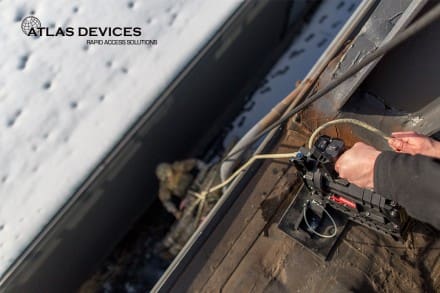

    Atlas Devices-APA5-Edge Loading w Two Person Load

    2-Person Rescue w/Edge Guard: Horizontal Hoist w/ Low Point

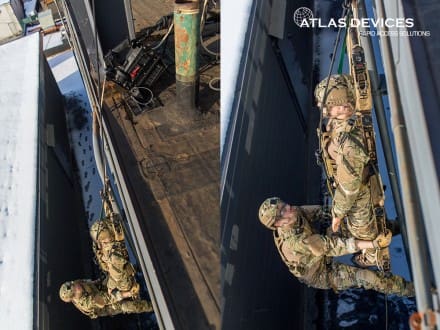

    Atlas Devices-APA5-Vertical Patient Recovery w Remote

    1-Person Rescue w/ Remote Control: Vertical Hoist

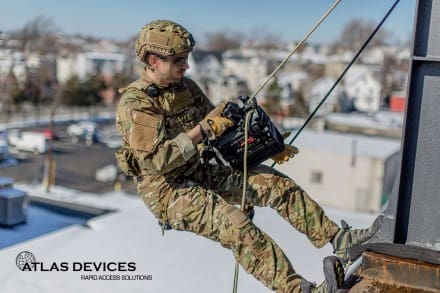

    Atlas Devices-APA5-Dismount for Patient Recovery

    Get the full Atlas Catalog here: atlasdevices.com/pdf/Atlas_Devices-2015_Catalog.pdf

    For more info visit www.atlasdevices.com or email [email protected].

    High Angle Solutions is a weekly feature by DMM, CTOMS, and Atlas Devices.

    High Angle Solutions – Atlas Devices – ATL (Atlas Tactical Ladder) – RACC System

    Wednesday, January 13th, 2016

    [ATL-RACC] Horizontal Hoist w Attendant

    The ATL-RACC utilizes the Aluminum Tactical Ladder (ATL) designed by Atlas, displayed in our previous post as the core backbone of the RACC system. The RACC Kit is a soft goods attachable patient packaging, bridle, and stow cover kit that can be attached to the ATL rails during all assault ladder use cases without impacting ladder functions. The unique style covers enable the straps to be deployed in appropriate phases for securing patients to the ladder and rigging the bridle system for vertical or horizontal orientations without any tying of knots. The core ATL provides a more rigid platform to protect patients during difficult edge transitions. The RACC can also convert the ATL into a bipod / high point for litter work and edge rappels.

    The ATL-RACC is capable of meeting the following mission profiles:

  • Litter/Hoisting/Drag
  • High Angle Rescue
  • Confined Space
  • Structural Collapse
  • Disaster Response
  • Glacier
  • Why ATL-RACC?

  • Immediate access to hoist capability with extremely minimal configuration setup time and steps
  • Low volumetric/weight impact for carriage to already existing primary task equipment (i.e. a ladder)
  • Combine adverse terrain litter capabilities (Hoist-able Litter, Edge transitions, Confined Space access) into one lightweight attachable system for total team weight reduction
  • Reduce time of safe TACEVAC transport in TCCC
  • Reduce operators required to execute TACEVAC capability freeing them for for other critical tasks
  • Atlas Tactical Ladder System Introduction-Rescue Operations from Atlas Devices on Vimeo.

    Get the full Atlas Catalog here: atlasdevices.com/pdf/Atlas_Devices-2015_Catalog.pdf

    For more info visit www.atlasdevices.com or email [email protected].

    High Angle Solutions is a weekly feature by DMM, CTOMS, and Atlas Devices.

    High Angle Solutions – Atlas Devices – ATL (Atlas Tactical Ladder) System

    Wednesday, December 23rd, 2015

    Today, we’re introducing a new company to the High Angle Solutions rotation, Atlas Devices, LLC. Atlas Devices is a world leader in tactical access for SOF. Look forward to future High Angle Solutions posts from Atlas, in addition to CTOMS and DMM.

    ATL-RACC_Jumper_SSD_Med Res

    ATL System Introduction

    The Atlas Tactical Ladder system designed by Atlas Devices is an extremely versatile tool for SOF teams to increase their current tactical access capabilities while generating new ones never before possessed. The ATL System can be used for collapsible bridging, extended reach, weight reduction, ladder/bridge range increase, and more, in scenarios and locals including:

  • Urban Tactical Assault
  • Maritime Boarding
  • Rural Desert
  • Glacier
  • Fixed and Rotary Wing AIROPS
  • ATL Web Photo_Ladder_9919_Face Blur_Edited_Retina Display

    The core of the Atlas Tactical Ladder system is a rigid 7 ft collapsible ladder (P/N: ATL) weighing under 10 lbs. In addition to vertical climbing, the ATL can also safely bridge gaps with a 400 lb load. Its joint locking system can be set to auto-locking mode for rapid deployment or manual lock whisper mode for silent deployments. The collapsed profile can be packed within a torso dimension for ease of employment by all infiltration methods including MFF and AIE operations.

    ATL Web Photo_Bridge_9986_Face Blur_Edited_Retina Display

    The ATL has a suite of accessories that enhance the capability of the ATL by utilizing unique design features that integrate into the ATL core ladder/bridge system. All accessories are tool-less for rapid don/doff. Atlas Devices is currently finalizing safe working load ratings for a 15 ft bridge configuration of the ATL. Additional mission profiles and ATL capabilities that we’ll be highlighting in upcoming High Angle Solutions features include:

  • Litter / Hoisting / Drag
  • Confined Space
  • Structural Collapse
  • Disaster Response
  • VBSS / Pool Hooking
  • Rescue and TACEVAC
  • Stay tuned for more information.

    Atlas Tactical Ladder Introduction from Atlas Devices on Vimeo.

    Get the full Atlas Catalog here: atlasdevices.com/pdf/Atlas_Devices-2015_Catalog.pdf

    For more info visit www.atlasdevices.com or email [email protected].

    High Angle Solutions is a weekly feature by DMM, CTOMS, and Atlas Devices.

    SOMA – Atlas Devices

    Wednesday, December 10th, 2014


    The Atlas Tactical Ladder system can be used as a Ladder, Litter and Bridge. Because it is collapsible, it can be jumped and you only need to carry the sections you require. The sections are removable and you can add sections to the 7′ standard length to bring it out to 15′. It has a 350 lbs rating with a 2:1 safety factory, and that’s in the bridge mode!


    In addition to integrated handholds the ATL RACC also has an integrated patient packaging harness and vertical/horizontal hoisting bridle.


    The multi handle autolocks into various positions and can be used as a pool hook while in the Ladder mode or an offset handle in the Litter mode. You can also turn the litter into a table to get your patient off of the ground or to elevate head or feet.


    The ATL RACC can be carried on the MSIG pack we showed you last year via speed clips. However, you can use the MSIG frame to package your patient’s torso and head.


    www.atlasdevices.com

    SOFIC 2014 – Atlas Devices – Sled Dog Pack from PMK Solutions

    Thursday, May 22nd, 2014

    The guys at Atlas Devices showed us a new product developed by PMK Solutions (USAF PJ) called the Sled Dog Pack. We’ll give you a sneak peek and follow up soon with a full article.


    Designed specifically for PJs and Medics, the heart of the Sled Dog Pack is the aluminum frame sheet (for stability and durability) that integrates PALS Compatible slots into the design called MSIG for MOLLE System Integrated Gear.


    The MSIG offers shoulder straps and a padded yoke and lumbar which is removable to accommodate armor. The MSIG pouches include a micro haul kit, crash axe and GP pouch.


    It also incorporates a Removable waist belt called the MARCH Belt (Massive, Hemorrhaging, Airway, Respiration, Circulation, Hypothermia). MARCH is a trauma treatment protocol and the belt is configured specifically to support that treatment. Internally, the sleeve offers pockets for casualty cards and chem lights and the outer area offers two rows of PALS webbing. The sleeve accepts load rated belts. The pouches mounted from left to right support the MARCH acronym.


    www.AtlasDevices.com
