SHOT Show 20 – LBT Inc

Wednesday, January 22nd, 2020

LBT Inc showed some design concepts utilizing Whiskey Two Four’s ACRONYM fabric which is two layers of 500D nylon fabric joined back to back using a proprietary bonding process.

One example is this carrier. They also exhibited the 3-Day Gen 2 which not only incorporates the laser cut ACRONYM, but also TPU zippers and a Velcro field at the top.

Mystery Ranch BLACKJACK Packs

Monday, January 13th, 2020

Named after the indigenous Mobile Guerrilla Force advised by US Army Special Forces during the Vietnam War, the Blackjack line of packs from Mystery Ranch is based on the USSOCOM issued Special Operations Forces Personal Equipment Advanced Requirements (SPEAR) packs.

Commercially available in both Coyote and MultiCam 500D Cordura, BLACKJACK packs are intended for those who want the features of the SPEAR packs, but are not part of the program of record. The model designations correspond to the capacity size in liters.

Like the SPEAR issue packs, The BLACKJACK packs were designed as a complete military-based system with no design modifications to accommodate civilian use. However, there are slight differences between the two lines.

-SPEAR packs have ¾” buckles; BLACKJACK packs have 1”.

-SPEAR packs have a rainfly pocket on the bottom of the pack; BLACKJACK packs do not.

-SPEAR Assault has 3 compression straps on each side, Blackjack 50 only has two.

Mystery Ranch is also the first company to incorporate IR-compliant zippers into their packs.

All three packs use the same full carbon Mystery Ranch frame featuring lightweight bolsters and Dyneema-CORDURA laminate. This Military Light Frame (MLF) is a rigid, yet dynamic system, that moves with you. The frame consists of four vertical and three horizontal carbon fiber stays.
The MLF weighs 2 lbs lighter than its predecessor, the NICE Frame, by using different materials and construction methods and reducing the profile of the wing and belt.

It also features a Futura Yoke which easily micro adjusts to the torso length allowing the proper amount of stand-off between the back and frame. What’s more, the removable BVS (Bolstered Ventilation and Stability) system allows for a stable, secure fit over body armor.

BLACKJACK 100

The BLACKJACK 100 is a 100 L pack including a 23 L sleeping bag compartment at the bottom. It features four external pockets with top-open zippers. The top lid is removable with straps that allow it to be used as a bolt/E&E pack. To help support the taller pack, the BLACKJACK 100 uses a unique frame extension to stabilize larger loads.

BLACKJACK 80

The BLACKJACK 80 is an 80 L pack with four external pockets featuring top zips. It has full-length zippers on each side for fast access to the main compartment.

BLACKJACK 50

The BLACKJACK 50 is a 50 L, top-loading pack with two external pockets that each have internal, mesh pockets. The pack has full-length zippers on each side for fast access to the main compartment.

Oh The Possibilities – Arc’teryx LEAF Alpha FL 30

Friday, January 10th, 2020

During a visit this week to the Arc’teryx HQ in North Vancouver, I spied a MultiCam version of their outdoor climbing pack, the Alpha FL 30.

This pack used the Alpha FL’s design which will hold up to 30 liters with the collar extended (~25 liters with the collar stowed) but was made from the same waterproof laminate used for their drypacks.

I spoke with the design team and it’s one of many concepts they’ve put forward. It may or may not go into production, but if it does, it will most likely be as a limited run special make up (SMU) like the Atom SL in Wolf Grey, released yesterday.

-Eric Graves sends

The Baldwin Files – The Issue MOLLE 4000 Airborne Rucksack

Monday, December 30th, 2019

It has been awhile since I have done an article on tactical gear. In the last few days, I managed to get my hands on the new issue version of the Molle 4000 “Airborne” Rucksack. I do not own a lab coat so I am not in the position to objectively and scientifically test this ruck; but I can provide my initial professional evaluation. The opinions I am offering are influenced by my specific experiences and individual preferences; but I think I can provide some broadly applicable and valid observations and hopefully useful practical information for the reader.

Up front, I will make these points to frame my comments and for the reader to keep in mind. There is no such thing as perfect gear. I have never been issued or bought any load-bearing item that I was completely satisfied with out of the wrapper – ever. I believe that everything can be improved and even the best and most expensive gear still needs at least some “customization” to be optimized for each individual user. Indeed, I have already done some of that to this sample and will point out a couple of my modifications and my rationale as we go alone.

I did spend most of my military career on Airborne status as a jumper and Jumpmaster; so I have a great deal of hands-on experience with Airborne operations and techniques. I am also incorporating a number of pictures for illustrative purposes, and a couple of earlier SSD articles with other pictures are here and here for additional reference. As pointed out in the previous pieces, this ruck is being issued to the 82nd Airborne Division and other Airborne units in the Army. I expect that will eventually include the Ranger Regiment, SF Groups, and other ARSOF units because of the Army’s Title 10 responsibilities. There is also some indication that the Army is exploring expanding the issue of this ruck to at least some non-Airborne units.

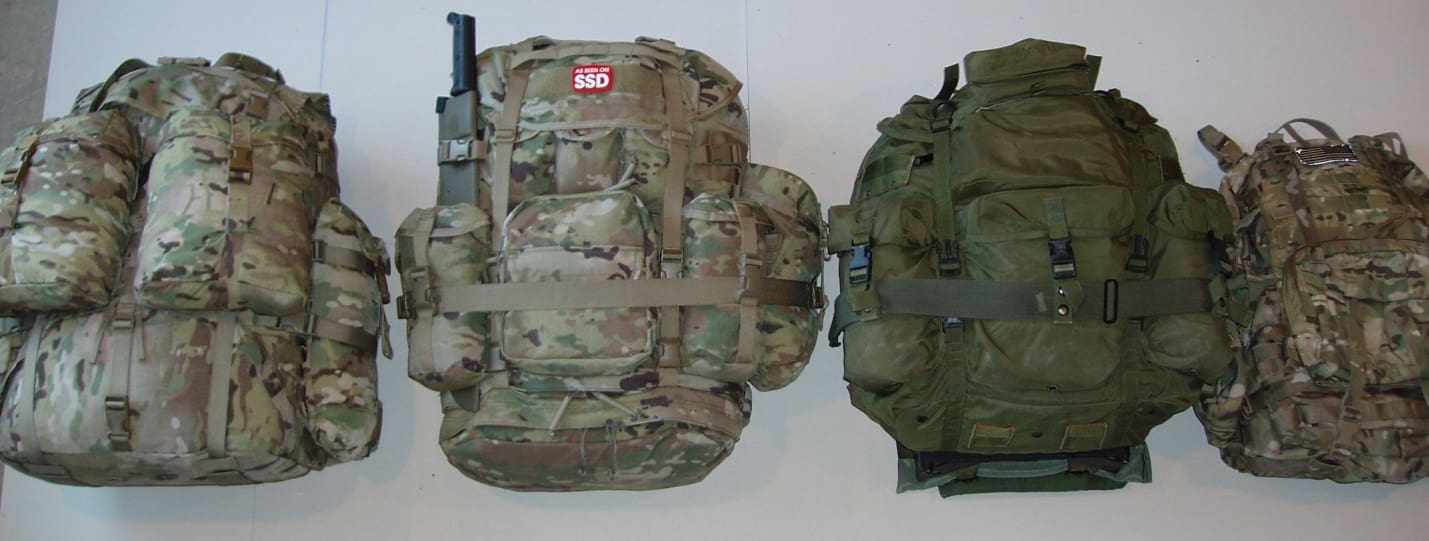

Let us start with a size comparison. From left to right, and largest to smallest, are the Molle Large, the Molle 4000, the ALICE Large, and the Army’s Medium Rucksack. The Medium Rucksack has ~3000 cubic inches of space. I have a couple of extra pouches mounted as well as a beavertail so this one is probably in the ~3500 cubic inch range. The ALICE is approximately ~3800 cubic inches including the exterior pockets. The Molle Large bag is ~4000 alone and ~5000 cubic inches with a pair of Sustainment Pouches added as shown. As the name implies, the Molle 4000 is ~4000 cubic inches including the external pockets. Compared to the Molle Large, the Molle 4000 has considerably less available real estate for additional pouches. Still, although it may not look like it, it is possible to mount the issue Army or USMC Sustainment Pouches in a somewhat compressed fashion on either side as shown on the right of the ruck.

As the picture also shows, the 3 bottom exterior pockets on the Molle 4000 are approximately the same volume as those on the Large ALICE. Although, since the cordura material is stiffer than packcloth, I found that I could stuff just a little more into the ALICE pouches. The two on either side have a pass thru channel behind them like their ALICE counterparts. However, the opening is just barely big enough for a GI Machete Sheath to be slipped in – nothing any wider or fatter. The horizontal strap shown comes with the ruck and is labeled “Molle 4000 Compression Strap.” Back in the day, we used a GP Strap to do the same thing on the ALICE as shown. It serves to cinch the pouches and attached items like E-Tools to the ruck to minimize flop or bounce – much like the Brits use bungee cord around their old-school belt kits. No doubt, an old ALICE hand like me added this throwback item. I think today’s soldiers will find that it is a useful accessory.

The three smaller pockets towards the top of the rucksack look to be identical to the same pouches on the Large ALICE. They are indeed just as wide but are actually about an inch shorter. On the ALICE, those were very popular for everything from toilet paper, 550 cord, bungies for shelters, to dip cans and smokes. I have been told that they were originally sized to hold a 30 round M16 magazine. A magazine will indeed fit in the pocket; however, I never saw anyone use it for that purpose. I am not sure I believe the story anyway because the Large ALICE was type classified several years before the 30 round magazines became standard issue. Because they are not as deep, an M4 magazine will not fit in the small pockets on the Molle 4000. Still, I think the small pockets will be well received and provide troopers the option to segregate small items for quick access.

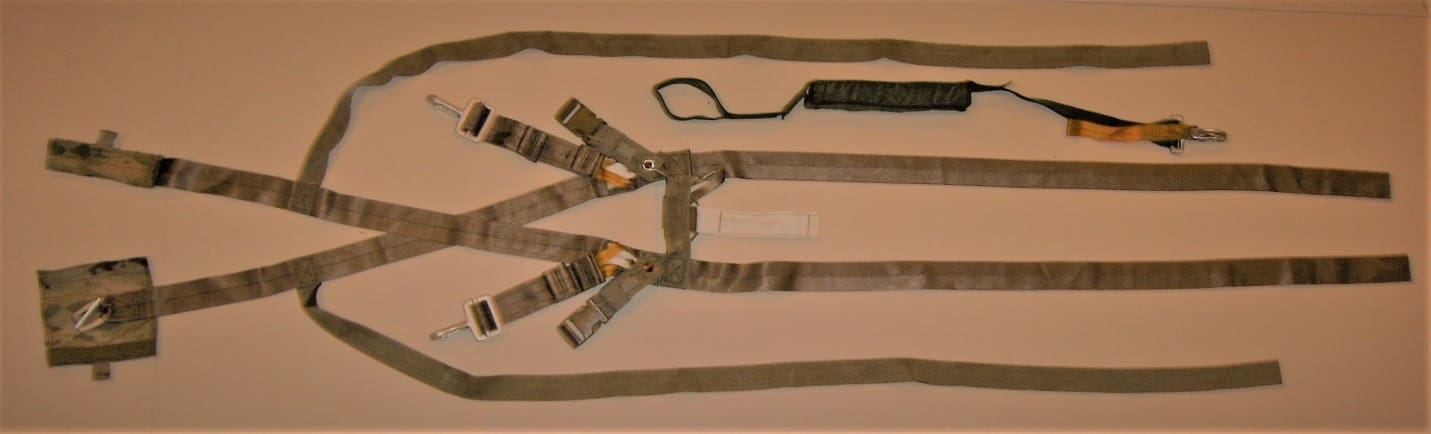

In its Airborne role, the Molle 4000 is actually only one-half of the equation – truly even less than half. IMHO, the true star of the show is a much improved Harness, Single Point Release, Molle (HSPR-M) that is being issued concurrently as a separate component. Note: NO portion of the new HSPR-M or any other air item is permanently sewn into the rucksack. Indeed, while rigging and de-rigging of the ruck is much faster with this new harness, the process would be very familiar for any American trained as a static line jumper in the last 30 years. That is a big plus; this new harness will be an easy transition for all jumpers and will actually be considerably easier and faster to check during Jumpmaster Personnel Inspections (JMPI). The new harness is also reverse compatible and can be readily used to rig any rucksack or jumpable load that could be rigged with the older HSPR.

In a nut shell, the big difference between the old and the new is that the release mechanism and attaching straps have been moved to the center of the HSPR-M rather than being positioned at one end near the friction adapters (metal buckles), as it was with the earlier version. Now, when rigged, the release mechanism remains centered on the bottom of the ruck while the friction adapters are routed all the way to the top. Throughout the Airborne operation, the jumper has full access to all the exterior pockets and can even access the main rucksack compartment rapidly if needed without completely derigging and rerigging. That feature alone is an especially important and welcome enhancement. That is because, in real-world contingency operations, mission critical items including ammunition and rations are routinely delivered to the jumpers at the airfield and right up to the point of boarding the aircraft. In short, the new HSPR-M represents a significant product improvement.

As far as I can tell, there is no intention to change the current Hook and Pile Tape (HPT) Lowering Line. Hook and Pile Tape = Velcro. As is Army SOP, I expect that current HPT Lowering Lines in OD (as shown) or Foliage will continue to be used as long as they are serviceable. Eventually, new lowering lines will be produced in Tan 499 as replacement items as required. The ALICE was issued with an instruction pamphlet and the Molle System has a manual; however, if there is a pamphlet for the issue Molle 4000, I have not seen it yet. I presume it will be an addendum to the Molle System and other applicable combat equipment rigging manuals shortly.

Consequently, since I have not seen the instructions, some of my observations – especially about rigging procedures – are just educated guesses. However, while I might not have rigged it precisely in accordance with the official SOP, I bet I am real close. I can guarantee that I have rigged this ruck in a way that is safe to jump and will work as intended. However, this is not a rigging class and I will let the pictures speak for themselves for the most part. As I said, those of you with experience with the old HSPR will find it mostly familiar.

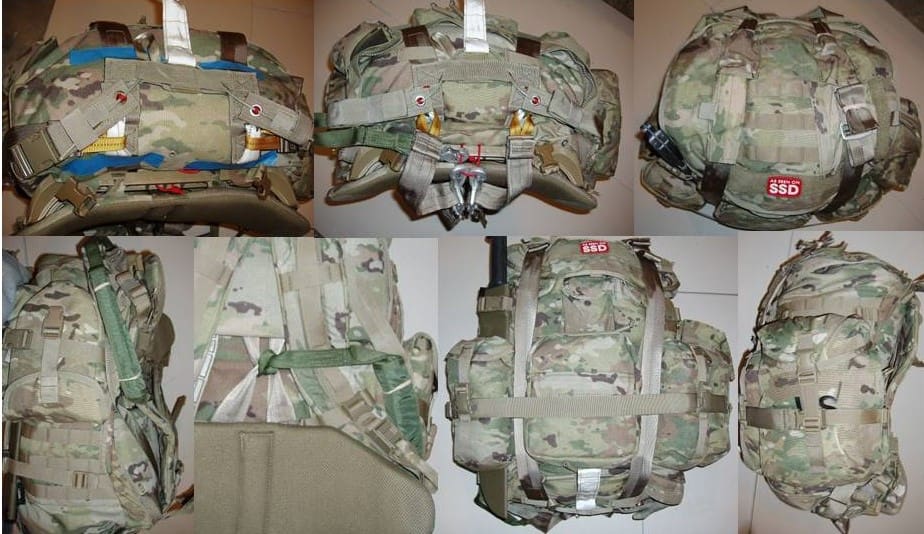

In some of the pictures, the reader may notice that I replaced all the elastic loops and two sided Velcro that comes with the Molle 4000 for strap management. Instead, I prefer to use ITW triglides. The triglides provide an additional tensioning device and failsafe to keep straps from slipping or coming inconveniently unstowed from an elastic retainer. If you read my three-part article on the ALICE, you also know that I am no fan of wrap around waist belts / pads. Therefore, I also traded out the pad that came with the Molle 4000 for a DEI pad designed for the 1606 frame. It hugs the full curvature around the bottom of the frame. I find that spreads the felt weight across the entire area of the body in contact with the pad. Because of the curve, the pad “cups” the back and sides rather than putting pressure on any one spot.



In combat, soldiers put a pack on and off countless times a day in sunlight and darkness and in blizzards and driving rain – and often under fire as well. It is tiring. Uncomplicated is better. Rucksack configurations that are not prone to getting tangled up with other gear or require a lot of fiddling steps to mount and dismount are eminently more practical and appreciated. From my perspective, the DEI style pad integrates much better, especially with the belt worn gear I personally favor, and provides about as much comfort as possible without the negatives. Warfighting ain’t backpacking; and if I am going into a fight this is how I prefer to run my ruck. Otherwise, as the reader can see, the Molle 4000 bag and suspension system is pretty basic. As previously reported, it is a hybrid, half ALICE and half Molle. For example, on the inside (not shown) is an ALICE style sewn in radio pouch and a Molle style zippered panel that can be used to divide the main compartment in half. I think soldiers will actually appreciate the pack’s utilitarian nature.



I am not about to throw shade on the people involved in the design, development, or testing of the Molle 4000. I appreciate their hard work and I am sure they delivered exactly what they were asked to deliver. However, I would be negligent if I did not point out the areas that I feel strongly need improvement. Specifically, there are four problems I see with the Molle 4000: one relatively minor, and three major. First, the minor issue. The current drain grommets on the exterior pouches and the bottom stow pocket are too small. They are much smaller than those on the ALICE or the Molle Large. I do not know why. More importantly, while there are small grommets at least on the bottom of the air items stow pocket, there are no drain grommets at all on the bottom of the rucksack itself. Therefore, if water gets into the main compartment of the ruck it will not drain. That should be an easy and quick fix.



The second problem is that the zipper providing access to the bottom of the rucksack’s “sleeping bag compartment” is too short. It does not even go half way around the ruck. That means the opening is narrow rather than a fuller size as found on the Molle Large or FILBE. In turn, that means soldiers will have a difficult time getting something the size of a patrol sleeping bag – let alone a full sleep system – through that unnecessarily restrictive opening. In contrast, the zipper on the air items stow pocket goes a full 2/3 of the way around. It is a good thing they added the bottom access zipper; the prototype Molle 4000 did not have one at all. No doubt, soldiers can live with it as is – if absolutely necessary – but they should not have to. Therefore, the bottom of the rucksack needs some modification or even redesign (see problem four) to make access much more user friendly then it is now.

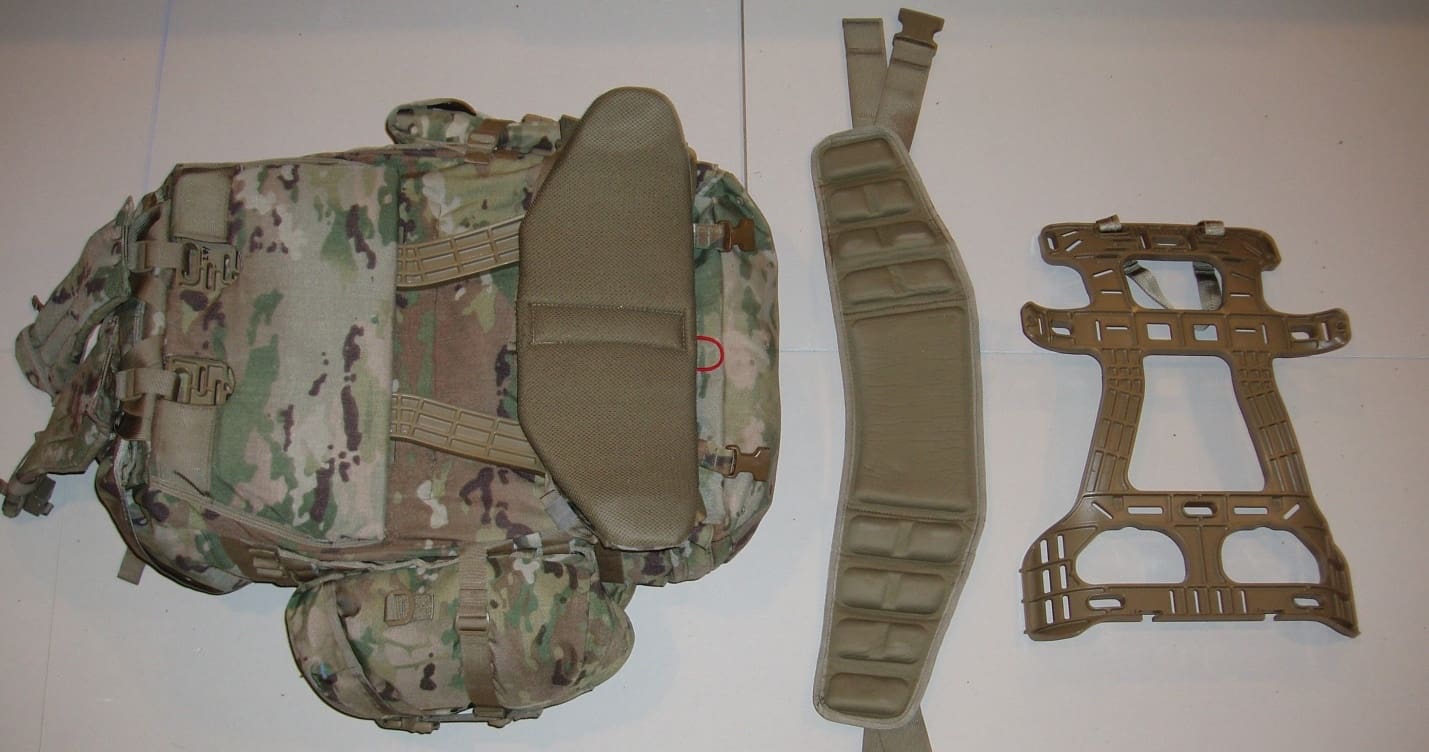

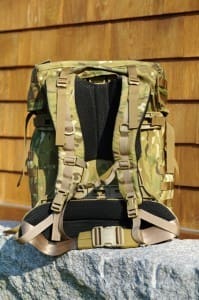

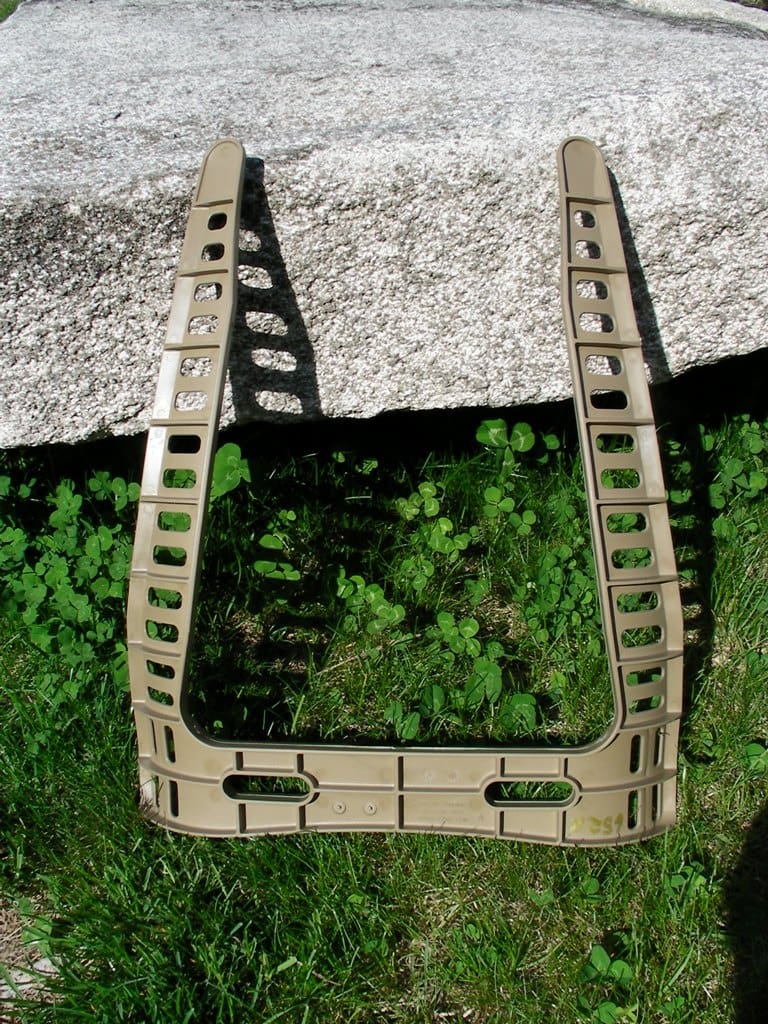

The third – and more significant – problem is that the wide upper pad of the Molle 4000 entirely covers the horizontal recurved arms of the 1606 frame. I submit that those arms are its single best feature. Certainly, the center crossbar has to be padded because otherwise it would press uncomfortably against the soldier’s spine. However, as long as about 2 inches on each end are exposed beyond the padding, those arms provides essential “hard points” to tie down heavy and outsized items like mortar baseplates. It would be a shame to keep something like that completely covered up and unavailable when they could be of great utility to the soldier carrying a combat load. Note: the USMC FILBE rucksack also uses the 1606 frame. A friend pointed out to me recently that the FILBE prototypes had a wide pad similar to the Molle 4000, thus leaving the recurve arms unusable. However, the issue FILBE featured a changed pad system that left the ends of those arms exposed rather than covered. I presume that the USMC saw the greater tactical value in making that modification. I suggest the Army do likewise before the Molle 4000 goes into expanded production.



The fourth, last, and most glaring, problem with the Molle 4000 is the air item stow pocket arrangement itself. It is a superfluous design gimmick that is more trouble than it is worth. I know someone asked for it – and some people must like it. It is still demonstrably unnecessary. I would argue emphatically that paratroopers have no pressing requirement for a pocket on their rucksack dedicated solely to the storage of air items. The first clue should be the fact that we have gone DECADES without ever identifying the need for such a pocket before. In all my years of jumping, I do not ever recall a single time when stowing my air items – without a dedicated pocket – was a problem. I do not remember it being an issue for anyone else either.



Even more to the point, paratroopers have no TACTICAL need whatsoever to carry air items off the dropzone. Once those items have served their one and only purpose – to deliver a paratrooper and his combat load safely to the ground – they are all expendable. They always have been. The stuff is meant to be abandoned in order to unburden the trooper as he moves as rapidly as possible to his unit assembly area and / or combat objective. That includes the parachute, harness, kit bag, weapons cases, HSPR, lowering line, and any other packing material that dropped with us. The troopers shed it all, either immediately upon landing or at the first opportunity. It is dead weight.



Sure, we have a habit of bagging it all up and carrying everything to a convenient centralized location so that the Riggers can take the chutes and accessories back to repack and refurbish. That practice is a sensible conservation of our training resources and money. The fact is, we only issue select air items (HSPR & HTP Lowering Line) to individuals because it is convenient and a time saver for troopers to rig their rucks – and perhaps get their rucksacks pre-inspected by a unit Jumpmaster – before they get to the departure airfield to draw their parachutes, weapons cases, kit bags, etc. to finish the rigging process.



However, all of that represents an entirely ADMINISTRATIVE requirement we levy on ourselves that has nothing to do with jumping into combat. And after all, a successful combat jump is ultimately the only jump that really matters – tactically, operationally, and strategically – to the individual paratrooper, the Airborne unit, the Army, and finally the Nation. We do not need to teach our troopers bad habits or add an unneeded design feature to our load carrying gear to support a bad habit. Airborne leaders should constantly be making the clear distinction between what we do routinely on some CONUS dropzone in training vice what needs to happen on a hot DZ in some hostile place.



The air items stow pocket is certainly not necessary for the rigging process. In fact, the pocket actually slows down the procedure rather than making it smoother. It would be much cleaner if the bottom of the Molle 4000 just had four web bars sewn on that would index the HSPR’s release mechanism in both directions on the ruck. See my mockup using the blue painters tape (above). Then, the entire design of the bottom of the rucksack could be significantly simplified. The bottom of the rucksack itself would be just that – the bottom. The now redundant sleeping bag compartment zipper could be eliminated entirely. The 2/3s zipper would be retained and would give better access to the interior anyway. The ruck could be rigged even faster and there would no longer be a need to secure the flap of the open stow pocket anymore either. That would be markedly better.



Bottom line: the new HSPR-M is a home run for Natick and whoever designed it. The Molle 4000 Rucksack is a solid base hit but has some shortcomings that really need to be addressed. I think that perhaps some decision maker(s) got a little too fixated on securing air items rather than concentrating on optimizing the ruck itself for combat. Even in an Airborne unit, the Molle 4000 will just be a rucksack on a soldier’s back 95% of the time. It could be a much better ruck with some relatively modest adjustments. As is, I think soldiers will generally like it. If those things I have identified are fixed, I think they might even love it. Granted, no one asked me for my opinions, but there they are. De Oppresso Liber!

LTC Terry Baldwin, US Army (Ret) served on active duty from 1975-2011 in various Infantry and Special Forces assignments. SSD is blessed to have him as both reader and contributor.

Tasmanian Tiger has Your Backpack Covered

Saturday, December 21st, 2019

Two new protective bag covers for backpacks keep gear and packs weather tight.

Miramar, Fla. (December 2019) – Tasmanian Tiger®, a tactical nylon line of products distributed exclusively for the US market by Proforce Equipment, Inc., offer protective covers for backpacks and bags to keep gear secure, weather tight and ready for transport. The TT Pack Cover fits over backpacks up to 85 liters in volume. With a roll-top pack closure and roll closure with a clear pocket for documents or name tags, the TT Pack Cover is ideal for air travel, protecting the backpack from travel abuse. It comes in black or olive for an MSRP of $24.95.

Another practical protective cover by Tasmanian Tiger is the TT Travel Cover in Medium and Large sizes for backpacks and bags. It is water-resistant with a triple PU coating and a zipper closure. It features a detachable, size adjustable carrying strap, and a hook-and-loop section for patches. A large clear pocket allows for easy access to travel documents or name tags. The TT Travel Cover comes in black or olive and retails for $49.95 for the medium size and $69.95 for the large size.

View the 2020 Tasmanian Tiger digital catalog here.

The Tasmanian Tiger TT Modular Sling Pack 20

Friday, December 20th, 2019

Carry with confidence with the Tasmanian Tiger® TT Modular Sling Pack 20, an ambidextrous, easy-access, gear pack.

Miramar, Fla. (December 2019) – Tasmanian Tiger®, a tactical nylon line of products distributed exclusively for the US market by Proforce Equipment, Inc., announces their newest sling-style day pack as the TT Modular Sling Pack 20.

Sling packs are traditionally identified by the diagonal shoulder strap that allows the user to simply “sling” the pack across one shoulder and wear it comfortably without slippage. The TT Modular Sling Pack 20 is ambidextrous for both right- and left-hand users. The back of the Sling Pack 20 is padded for superior comfort and also features a zip compartment, perfect for personal documents. Additionally, the shoulder strap can be detached and stowed away leaving two rugged handles for easy grab and go. The detachable shoulder strap can also be used as a warrior belt. The main compartment of the Sling Pack 20 opens completely allowing for easy access, and the rear compartment has lateral access. The front features two front pockets and the front and sides have laser-cut MOLLE for the addition of more pouches or gear. Internally, the Sling Pack 20 features large MOLLE hook and loop panels for attaching more accessory panels.

The TT Modular Sling Pack 20 is 20” x 9” x 5” with a 20-liter volume and weighs 35 oz. empty. It is made from 700 Denier Cordura® and available in black, olive, and coyote. The totally customizable TT Modular Sling Pack 20 retails for $139.00.

Click here to see the 2020 Tasmanian Tiger digital catalog.

Platatac MAC ALICE V2 Field Pack

Thursday, December 19th, 2019

Manufactured from 500D Cordura, this updated model of Platatac’s popular take on the ALICE rucksack is packed with features. Use your own 1606 or ALICE frame.

Features
10 x large external utility pockets
2 x single zip
3 x dual zip
5 x clip (with drawstring closure)
5 x mesh storage pockets inside the main compartment
4 column PALS fields on sides to attach MOLLE-compatible pouches
2 x internal hydration sleeves with pass-throughs for tubes
7 column x 4 row PALS field on the front of the pack behind large centre pocket for the addition of MOLLE pouches
External hidden zip compartment under lid pocket
Internal zip compartment on the inside of the lid
Centre pocket features a pass-through for the handle of an issued E Tool
Internal zippered side pockets for bladders or long items such as tri-pods
Bottom zip access to the main compartment
Internal radio/cargo pouch with PALS
Lid pouch with waterproof zip access and covered zip access
Removable lid for OP Kit/Go Bag with web tape shoulder strap
Dual waterproof zip hydration/comms ports
Double drawstring closure to the main compartment
Zippered floor divides the upper and lower compartments
YKK zips
Shrink-wrapped paracord pulls
Drainage holes in the bottom of pack for water ops
Bar tacking on all major stress points
Padded section compatible with 1606 and Alice style frames (sold separately)
Nylon wrapped web tape carry handle

www.platatac.com/catalogue/new-products/platatac-2020-mac-alice

The Tasmanian Tiger TT Modular Daypacks

Tuesday, December 10th, 2019

The Tasmanian Tiger® daypacks in L and XL have a military pedigree but sport a casual, everyday carry look for business or pleasure.

Miramar, Fla. (December 2019) – Tasmanian Tiger®, a tactical nylon line of products distributed exclusively for the US market by Proforce Equipment, Inc., offer day warriors every-day-carry backpacks that don’t scream tactical but performs like a professional, the TT Modular Daypack L, and the TT Modular Daypack XL.

Both built on a Thermo Mold Carrying system, the daypacks ergonomically conform to the wearer’s body, providing all-day comfort without added weight, and its smooth surface makes it easy to wipe down. The daypacks are totally fit adjustable with a height-adjustable chest belt and detachable compression straps. A rugged carrying handle provides another option for carrying on both daypacks.

A flat front pocket with YKK zipper makes an easy-access pocket for documents. Laser-cut MOLLE on the front and sides of the daypacks allow the user to totally customize them with additional gear, whether one is taking the pack on a hike or an overnight business meeting.

Inside the main compartment, on the backside, the daypack is lined with more MOLLE hook panels to attach compatible loop pouches, keeping gear organized and easily accessed. The XL model is also designed to hold a 15.4” laptop, safely and securely. Additionally, the XL model is compatible with hydration systems (not included).

The TT Modular Daypack L has a 15-liter volume capacity, and the TT Modular Daypack XL has a 23-liter volume capacity, making both large enough for everyday gear without being cumbersome. They are both made from rugged 700 denier Cordura® with dependable, durable YKK zippers. Tasmanian Tiger offers customers more choices in professional performance day and backpacks.

The Tasmanian Tiger® TT Modular Daypack L and XL are both available in black, olive and coyote brown with the L model retailing at $109.00 and the XL version retailing at $119.00.

See the new Tasmanian Tiger 2020 catalog

TT Modular Daypack L showing Thermo Mold Carrying System.

TT Modular Daypack XL open to reveal MOLLE on back inside area.
